DSRT Bike-Lift

More bikes. More adventure. Less effort.
Your bikes belong on the journey – whether it is a spontaneous weekend trip or your next big adventure. With the DSRT Bike-Lift, you can securely transport up to two bikes at the rear of your camper and have them ready whenever the next ride begins.
The difference becomes clear as soon as you start loading. Instead of having to lift your bike all the way up to carrier height, simply pull the lift arm down and hook your bike into place. A short push is all it takes – the integrated gas spring then takes over a large part of the lifting effort while you guide the bike upwards in a controlled motion. This makes loading even heavy e-bikes much more comfortable, leaving your energy for what really matters: the next ride.
The Bike-Lift carries two bikes weighing up to 28 kg each. At the same time, you remain flexible when choosing your bikes: whether e-bike, mountain bike, gravel bike or conventional bicycle, the Bike-Lift is not limited to a specific wheel size, wheelbase or frame type. The maximum total load is 56 kg.

Especially practical while travelling: each bike can be loaded and unloaded individually. Simply take down the bike you need. The wheels are securely fixed in the wheel rails using straps, while the central frame holder provides additional support.

A Bike-Lift that grows with your adventure.

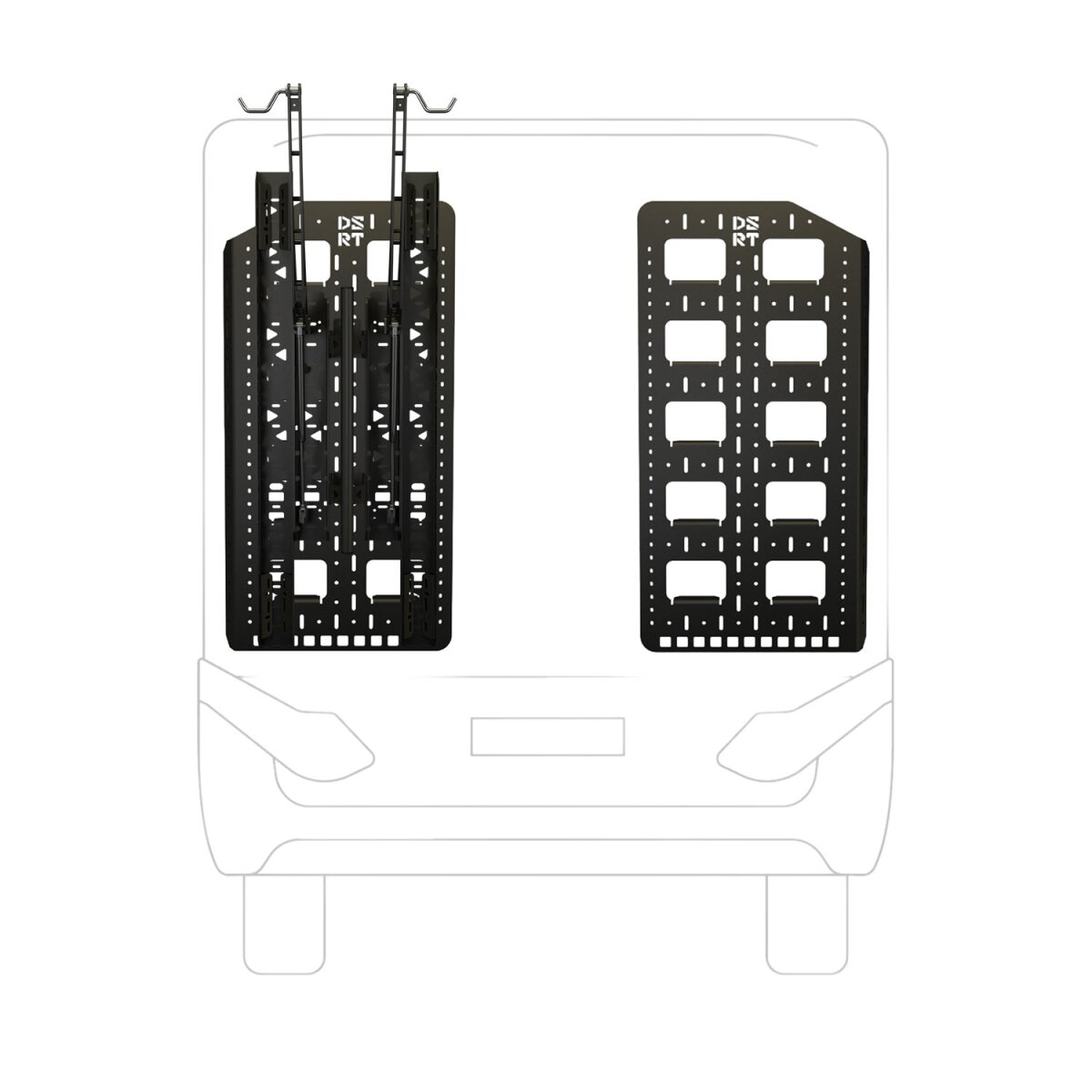

Two bikes today, perhaps three or four tomorrow. The DSRT Bike-Lift 2-bike system can be modularly expanded to carry up to four bikes using our single-bike extension modules. This means your bike setup can grow with your requirements without forcing you to commit to one configuration from the start.

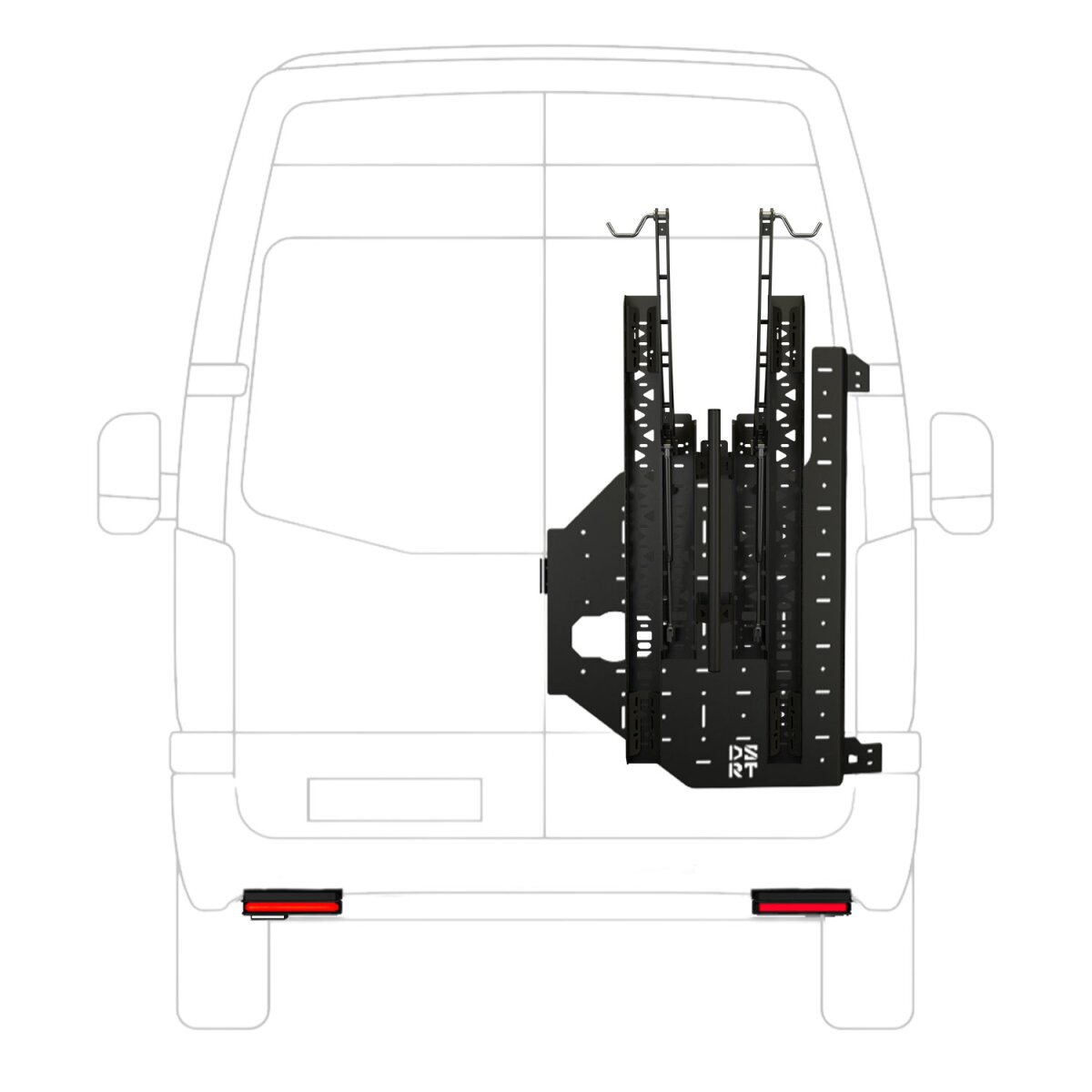

Your setup remains just as flexible on the vehicle. The Bike-Lift is mounted using the proven DSRT interchangeable hole pattern and is compatible with our Base Carrier Plate, Flex Carrier 2.0 and Multi-Mount Plate. This allows you to reconfigure the rear of your camper whenever you need to, reposition the Bike-Lift or combine your carrier system with additional DSRT modules.
All three DSRT rear carrier systems are E-type approved and do not require additional registration. The Bike-Lift mounted on the carrier and the transported bikes are legally classified as cargo.

Built for many adventures.

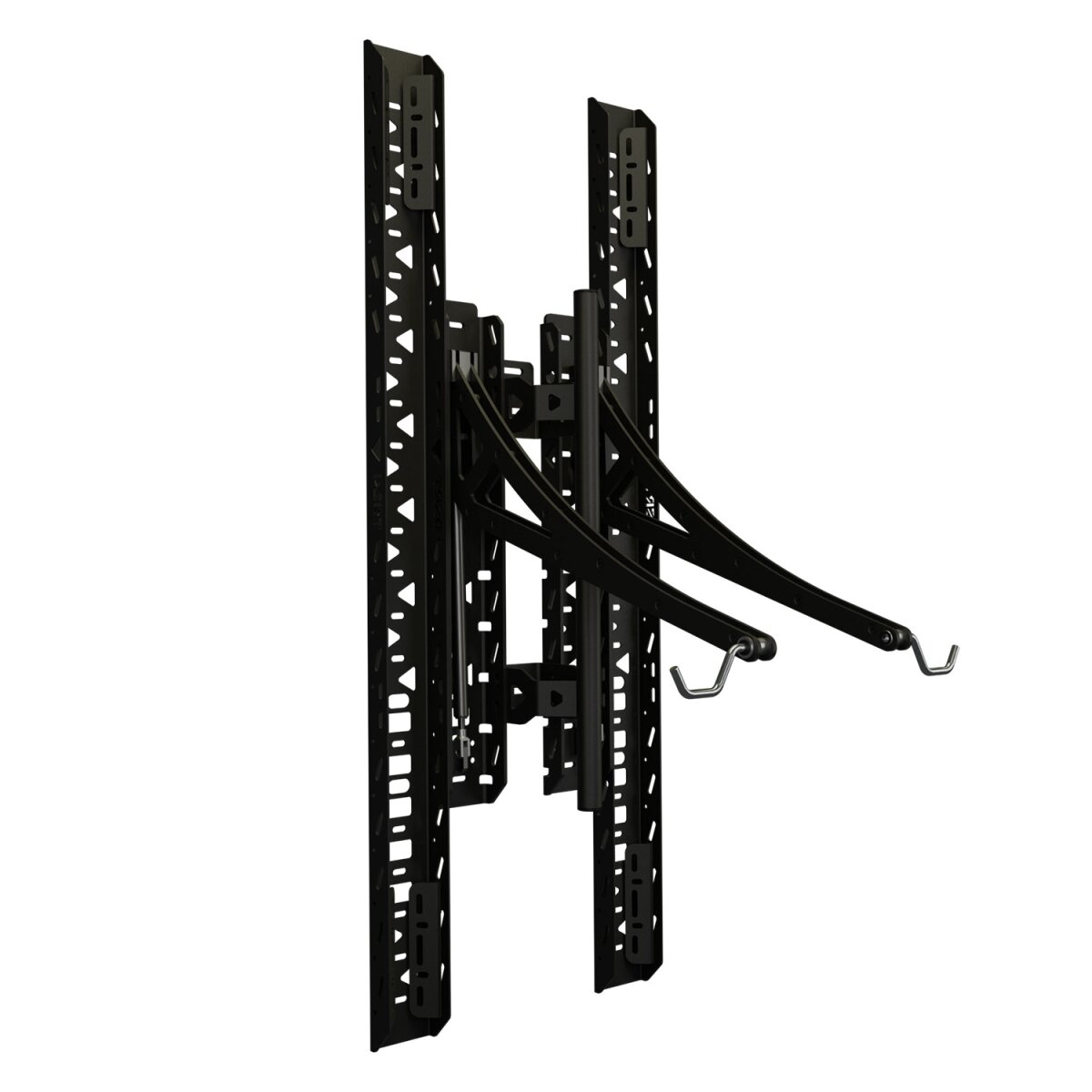

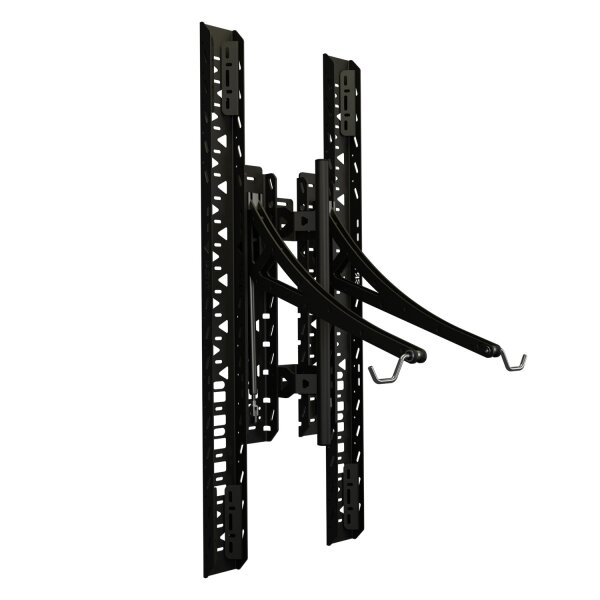

The Bike-Lift is made from high-strength aluminium, finished with a black powder coating and equipped with high-quality Teflon bearings. With a weight of only approx. 16 kg, the construction remains pleasantly lightweight despite a possible load of up to 56 kg.

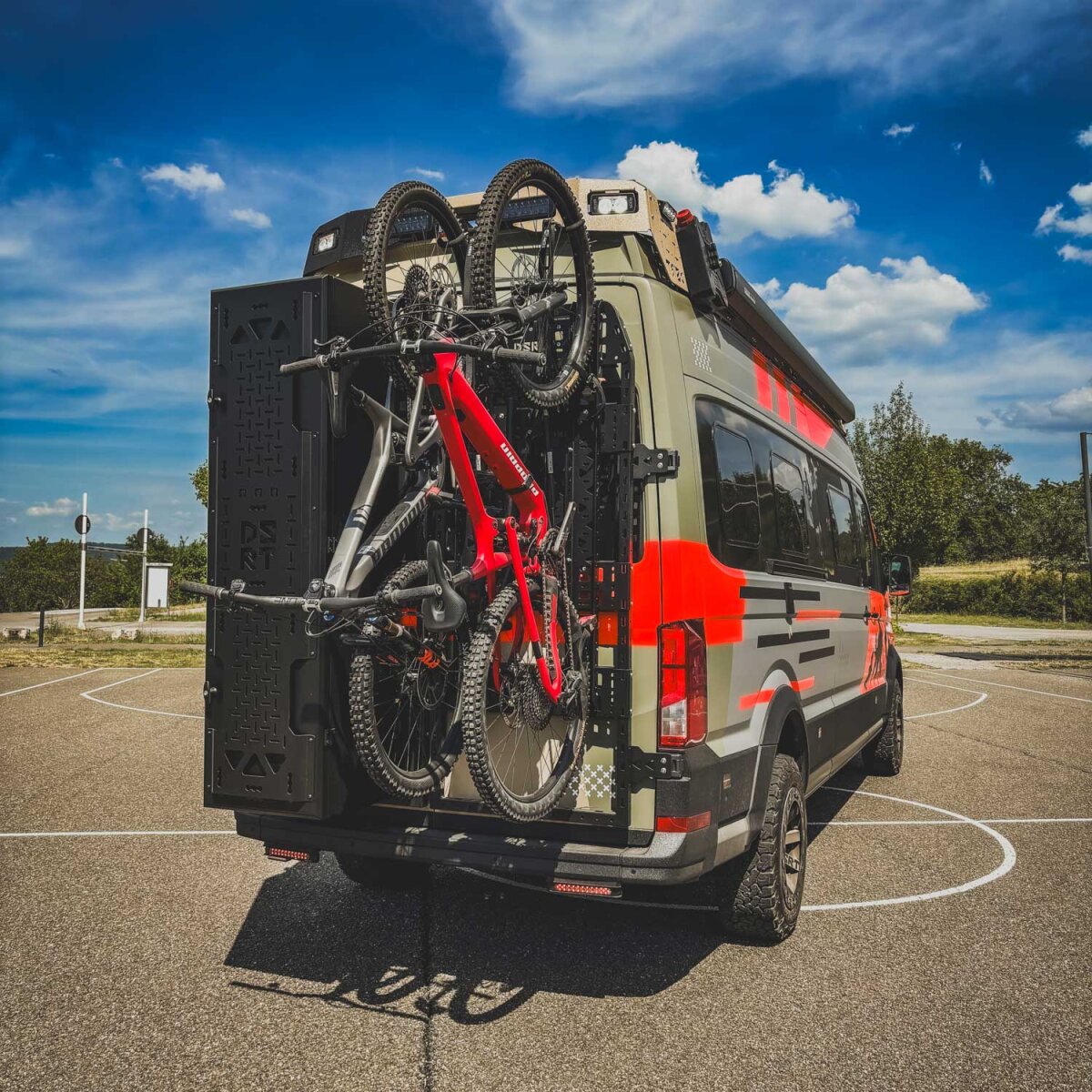

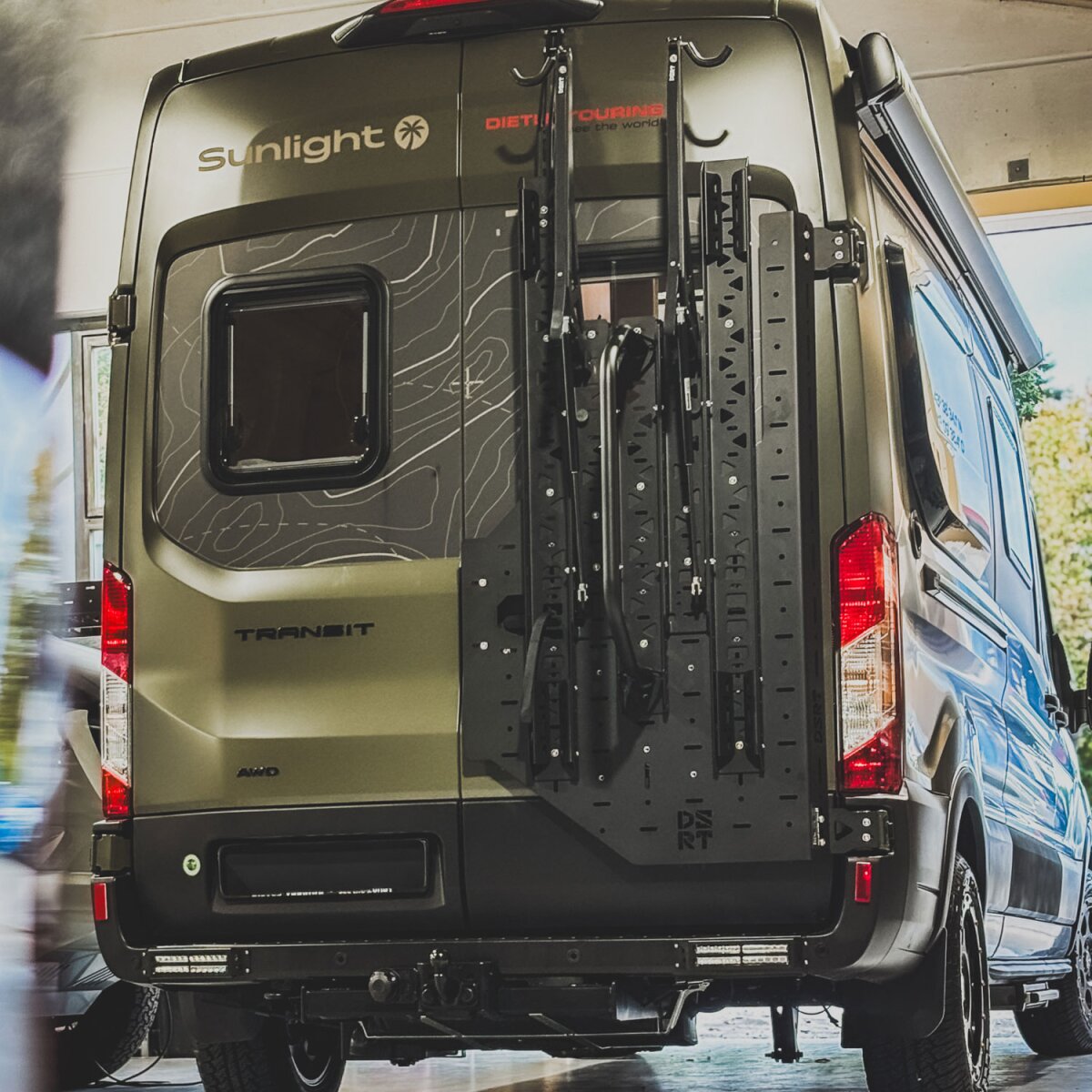

The bikes are transported vertically at the rear of the vehicle and securely fixed in the designated wheel rails. The result is a well-designed, compact bike setup at the rear of your camper – ready for many miles and many more adventures.

Install it yourself or have it installed by us.
The DSRT Bike-Lift is prepared for self-installation. When ordering, simply select whether you want to mount the Bike-Lift on the Base Carrier Plate, Flex Carrier 2.0 or Multi-Mount Plate. The required components and mounting hardware are supplied to match your selected carrier system.
The Bike-Lift is attached to the rear carrier system using the supplied M8 screws. These connections are tightened to 24 Nm.
Would you prefer to have your Bike-Lift installed directly by us? We are happy to carry out the professional installation at our facility in Weissach im Tal – so your setup is fully installed and ready for your next ride.
